In-Line Dip Tank Scalder

Model # B-DTS-9

Water:Water In: 2" NPT (25 PSI Max)
Overflow: 3" Ferrule
Tank Drain: 3" Ferrule
Steam Connection:1" NPT
( Steam rated ball valve is customer supplied )
100 lbs steam/hr
125 PSI from plant
Water Temperature:Regulated between 120°-180°

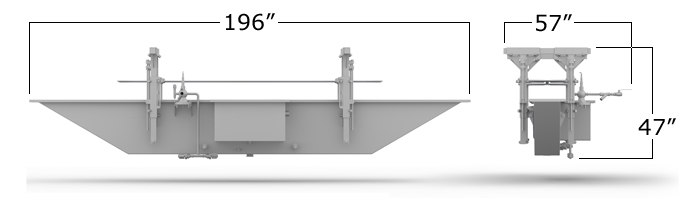

Width:Approximately 57"
Length:Approximately 196"
Capacity:Compatible with all line speeds
Height:Approximately 47"
