Hydraulic Power Unit – 4 Station
Model #: B-HPU-4
The B-HPU Hydraulic Power Unit by Berry Plumbing & Equipment can be sized and equipped for your specific requirements. Speak to one of our representatives about having an HPU designed for you. Berry Hydraulic Units are available in 2, 3, or 4 Station. Features include 15 horsepower motors, 20 gallon pumps and Air Cooled Heat Exchanger (not shown). Custom designed with the customer needs in mind!
| power: | 20HP, 3PH, 1800 RPM, 208-230/460V, 17.5 Amps | |
| capacity: | 200 Gallon Tank | |

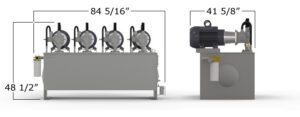

| height: | Approximately 48 1/2" | |
| width: | Approximately 84 5/16" | |
| depth: | Approximately 41 5/8" | |
| connections: | Fluid into oil cooler: 1 1/4" NPT 1 1/4" NPT to HPU ( Customer Supplies Hoses ) |
| power: | 20HP, 3PH, 1800 RPM, 208-230/460V, 17.5 Amps | |
| capacity: | 200 Gallon Tank | |
| height: | Approximately 48 1/2" | |
| width: | Approximately 84 5/16" | |
| depth: | Approximately 41 5/8" | |
| connections: | Fluid into oil cooler: 1 1/4" NPT 1 1/4" NPT to HPU ( Customer Supplies Hoses ) |
