Cascading Waterfall-7 ft

Model # B-CWW-1-7 FT

General Information Technical Information Printable Brochure Video

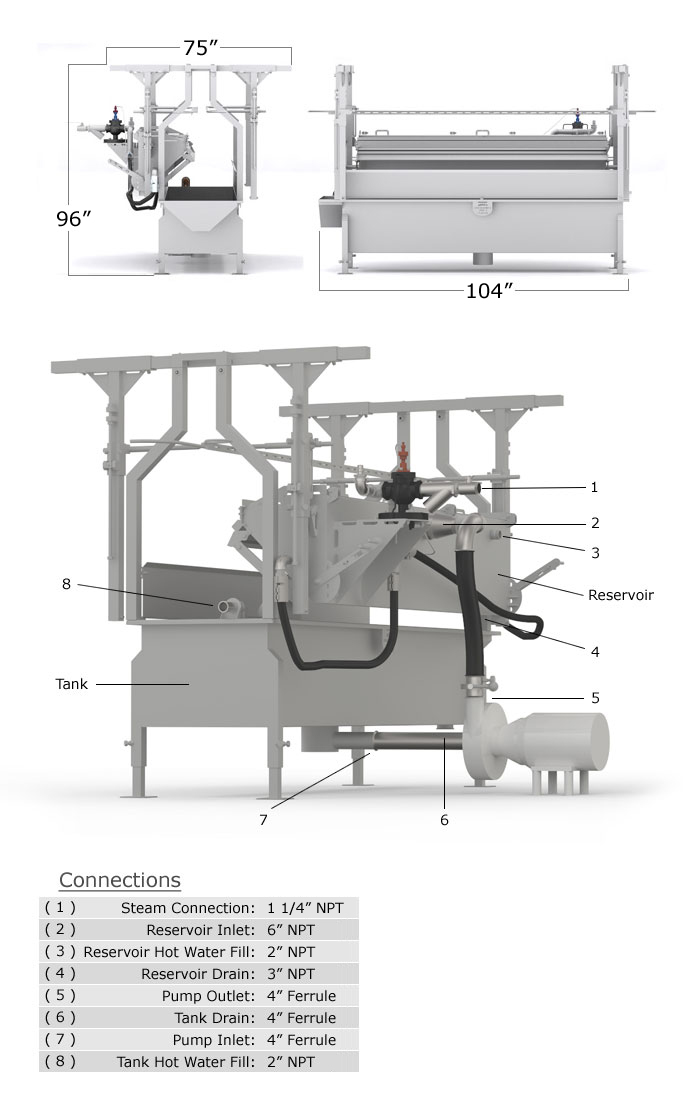

Water Reservoir:Hot Water Fill: 2" NPT
Drain: 3" NPT
Water Tank:Hot Water Fill: 2" NPT * 25 PSI MAX - Regulate Down *
Drain: 4" Ferrule
Steam:Connection: 1 1/4" NPT (Customer Supplied Ball Valve)
Pressure: 125 PSI
Pounds of steam per hour: 1365
Pump / Motor:350 GPM @ 15 PSI
10 HP, 1770 RPM, 3 PH, 60 HZ, 215TC
Capacity:Dependent upon line speed
Position in Line:Any location after the first bird picker
Height:Approximately 96"
Width:Approximately 75"
Overall Length:Approximately 104"
